Alfa TECH (PVC-U)

alfa solare logo tech

Description

PVC (polyvinyl chloride) is one of the world’s most widely consumed and highly versatile plastics. The properties of this amorphous thermoplastic material are highly variable depending on the additives used. Characteristics of PVC include good self-extinguishing properties, durability, good weather resistance (color and stiffness preservation, and impact resistance), and excellent dimensional stability. PVC is considered stable and safe in room temperature applications. It turns out to be very sensitive to light and heat; these have a degradative effect on it that manifests itself first with yellowing and at high temperatures (>180°C) with decomposition from which hydrochloric acid is released.
The product ALFATECH is the rigid version of PVC (U – unplasticized).

Features

Composition: PVC-U
Lambda 0.17
Can be used indoor and outdoor, UV-resistant*
Density: 1.45 g/ccm
Elastic modulus: 3200 Mpa (23°)
Breaking load: 35 Mpa
Flammability: V0 /HB
Coefficient of linear expansion: 7 ÷ 8.9 *10-5 K-1
Temperature resistance: 78° C
Not paintable
Coextrudable
Recyclable

Usage: thermal break and other uses

*depends on which material in our range

Certifications available

  • NF X THERMAL BREAK
  • CSTB QB49 approved for thermal break use

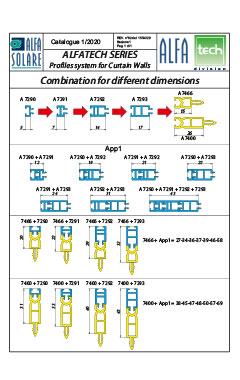

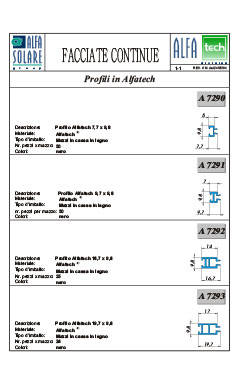

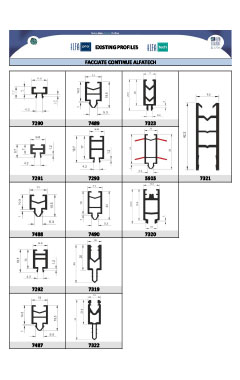

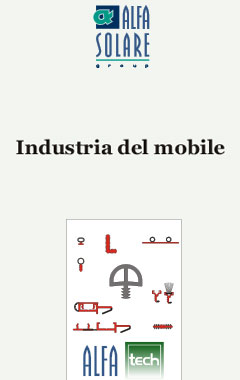

Catalogs
